Aluminum Honeycomb Panel

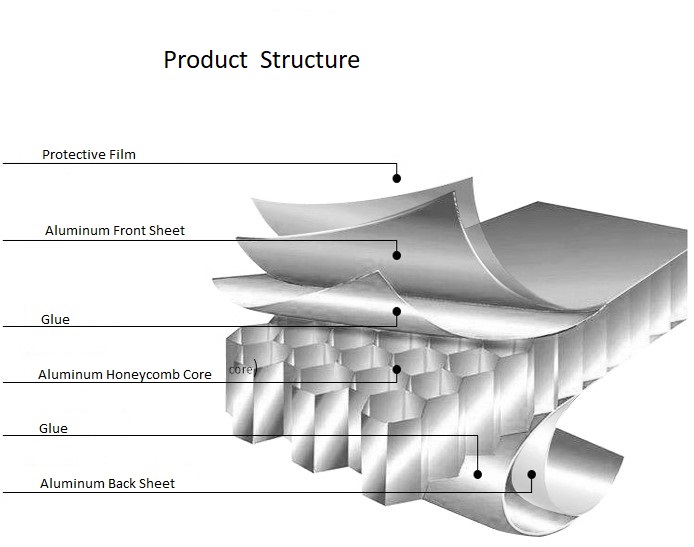

PuloMax aluminum honeycomb panel is a high-performance architectural panel engineered using aviation-grade composite technology. By bonding two aluminum alloy skins to a lightweight aluminum honeycomb core under precisely controlled temperature and pressure, it delivers exceptional flatness, an outstanding strength-to-weight ratio, and A2 non-combustible fire performance — all in a single integrated system.

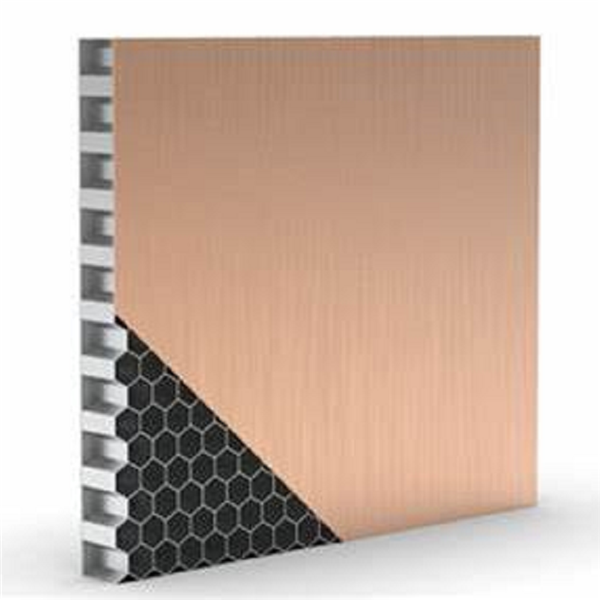

Unlike solid aluminum sheets that warp under thermal stress, the honeycomb panel acts as a true stressed-skin structure. The hexagonal core transfers shear loads across the entire panel surface, achieving compressive strength up to 100 times greater than a solid sheet of equivalent weight — enabling larger panels, fewer joints, cleaner sightlines, and reduced substructure costs.

Manufactured in our Jiangsu production facility under ISO 9001 certified quality management, each panel undergoes rigorous flatness inspection, coating adhesion testing, and fire performance verification before leaving the factory. Available in thicknesses from 10mm to 50mm and sizes up to 2000 x 12000mm, the panel adapts to projects ranging from interior feature walls to vast airport terminal ceilings.

Key Features

• Extraordinary Flatness at Scale — The stressed-skin structure eliminates oil-canning and wave distortion. Flatness tolerances within 1.5mm per linear meter, even at sizes up to 2000 x 12000mm.

• A2 Non-Combustible Fire Rating (EN 13501-1 A2-s1,d0) — Tested and certified; panels contribute nothing to fire growth and produce negligible smoke. Meets the most stringent safety requirements for public buildings and transport hubs.

• Lightweight Without Compromising Strength — A 20mm panel weighs approximately 8 kg/m2, roughly 60% lighter than a solid aluminum plate of equivalent stiffness. Reduces structural load, simplifies handling and installation.

• Large Format Capability — Maximum 2000 x 12000mm. Panels span floor-to-ceiling in a single piece. Custom sizes manufactured to order — no cutting or edge sealing required on site.

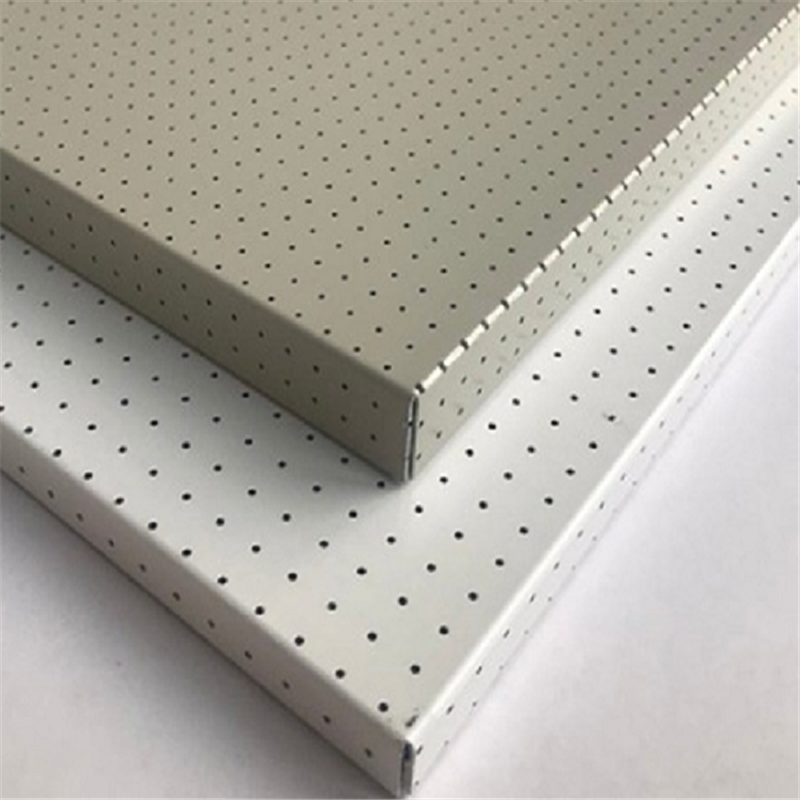

• Perforated Acoustic Options — Available with acoustic fleece backing. Custom perforation patterns, hole diameters, and open area ratios engineered to your target NRC.

• Unlimited Surface Finishes — PVDF (20+ year exterior color retention), PE (cost-effective interiors), nano-ceramic (9H scratch resistance), anodized, wood grain transfer. Custom RAL, Pantone, NCS color matching.

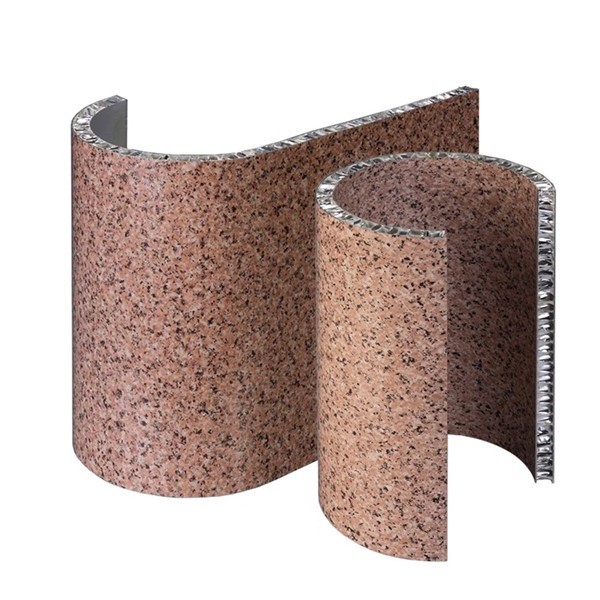

• Curved and Complex Geometry — Factory-curved to single or double radius for column wraps, barrel-vault ceilings, and flowing facade geometries. CNC-machined cutouts for lighting and service penetrations.

• 100% Recyclable, Low Lifecycle Impact — Aluminum is infinitely recyclable. Contributes to LEED and BREEAM credits. 30+ year service life.

Specifications

Surface Finishes & Customization

• PVDF (Fluorocarbon) Coating — Premium exterior choice. UV-resistant, 20+ year color retention.

• PE (Polyester) Coating — Cost-effective for interiors. Wide color range, good scratch resistance.

• Nano-Ceramic Coating — 9H hardness, self-cleaning, graffiti-resistant. Ideal for high-traffic areas.

• Anodized Finish — Natural metallic aesthetic. Available in clear, champagne, bronze, black.

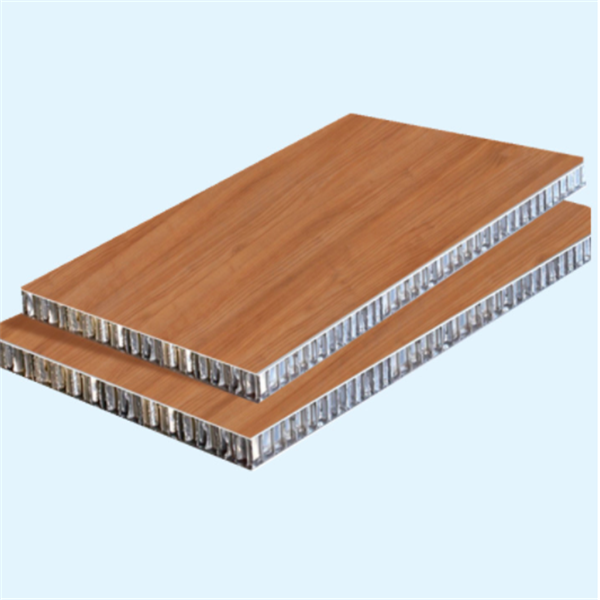

• Wood Grain Transfer — Photo-realistic oak, walnut, teak, maple patterns with fire-rated substrate.

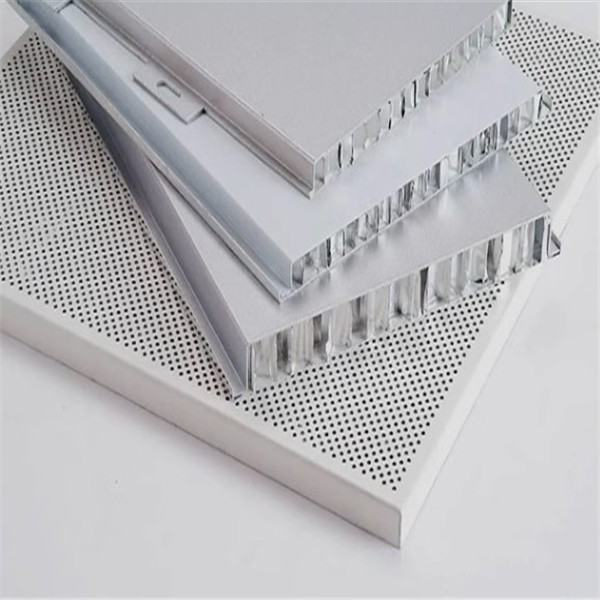

• Perforation Options — Round, square, slotted, or custom holes (1.0–10.0mm). Acoustic fleece backing.

Applications

• Airport Terminals — Large-span ceilings with strict fire codes and acoustic demands.

• Metro & Railway Stations — Non-combustible, moisture-resistant, graffiti-proof surfaces.

• Commercial Office Towers — Clean sightlines, premium finishes, lightweight installation.

• Hospital & Healthcare — Seamless, non-porous surfaces for hygiene-critical environments.

• Education & University — Acoustic performance, fire safety, and design flexibility.

• Hotel & Hospitality — Dramatic curved ceilings, custom perforation, luxury finishes.

• Cultural & Civic Buildings — Large-scale, high-precision architectural statements.

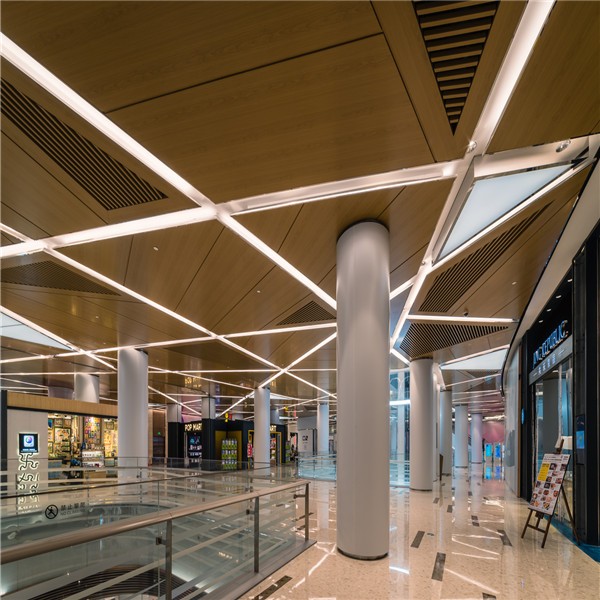

• Retail & Shopping Malls — Durable, easy-to-clean, and design-forward facade systems.

Installation Overview

Three proven systems — Hook-On (concealed fixing, individual panel removal for plenum access), Concealed Framed (factory-bonded sub-frame for exterior soffits), Exposed Fastener (mechanical fixing for wall cladding). Custom installation drawings (CAD/DWG) provided. On-site supervision available for large projects.

Quality & Testing

Every batch undergoes incoming material verification, in-process inspection (dimensional, lamination parameters), and final pre-shipment check (visual, color, flatness, peel strength). All panels are fully traceable to raw material lots with mill test certificates provided.

Product FAQ

Q: Honeycomb panel vs solid aluminum sheet?
A honeycomb panel is 100x stiffer in bending than a solid sheet of the same weight, and ~60% lighter than a solid sheet of the same stiffness.

Q: Maximum unsupported span?
A 15mm panel spans ~1200mm between supports (ceiling application). Our engineering team provides project-specific span tables.

Q: Can they be used outdoors?
Yes. With PVDF or ceramic coating and proper edge sealing. For coastal environments, we recommend PVDF with thicker clear coat or ceramic coating.

Q: Can I order a sample panel?
Yes. Full-size sample (600x600mm) produced with your specified finish. Cost deductible from production order.

Q: How are cutouts handled?
All cutouts are CNC-machined at our factory per your reflected ceiling plan. Factory-cut edges maintain fire integrity — on-site cutting cannot guarantee this.

Q: Green building certification?
Contributes to LEED v4 credits: recycled content, regional materials, and low-emitting coatings.
