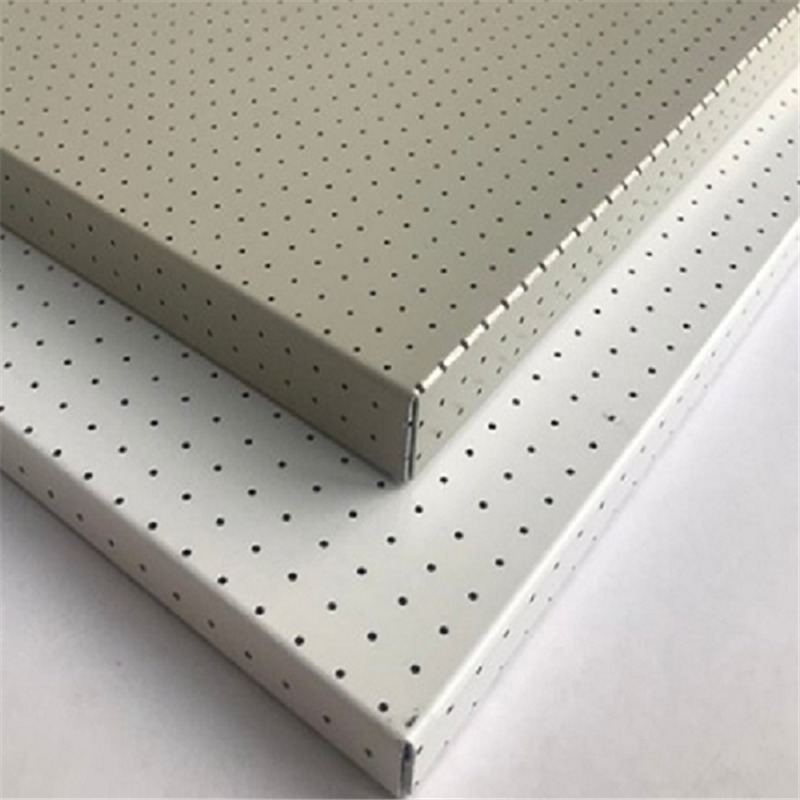

Aluminum honeycomb acoustic panels utilize aerospace-derived composite technology, offering high surface area, lightweight properties, and exceptional flatness. Compared to traditional composite panels, these products achieve superior acoustic performance through perforated face plates combined with non-woven acoustic backing.
Excellent sound absorption (NRC > 0.9)
Superior surface flatness and aesthetic installation
Large panel dimensions (up to 1500×6000mm)
A2 Fire Safety Certification
Easy installation and removal process
Recyclable aluminum materials, eco-friendly
Diverse pre-coated finishes (triple-coating process)
| Parameter Category | Technical Specifications |
|---|---|
| Sound Absorption Coefficient | NRC > 0.9 |
| Front Panel Specifications | 0.7mm AA3005 H26 perforated aluminum |
| Back Panel Specifications | 0.7mm AA3005 H26 perforated aluminum |
| Honeycomb Core Structure | 0.08mm 3003H18 aluminum honeycomb core |
| Surface Treatment | Pre-coated finish, triple-coating process, multiple colors |
| Panel Thickness | 12~50mm |
| Unit Weight | 6.5~13.3kg/m² |
| Maximum Dimensions | 1500×6000mm |
Note: NRC (Noise Reduction Coefficient) per ASTM C423 standard, A2 fire rating per EN 13501-1
